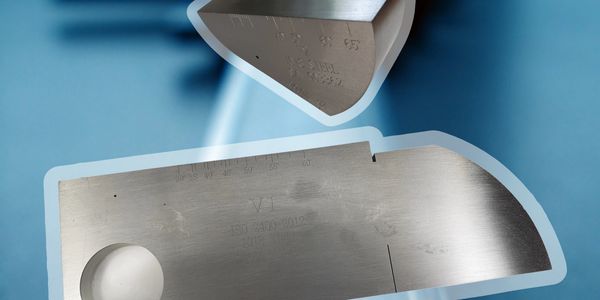

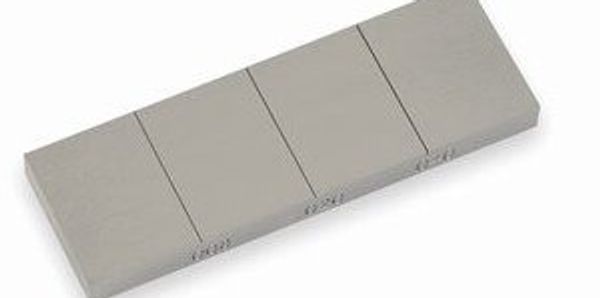

UT CAL Blocks
AS/ISO/ EN / JSA / ASTM Standards
Carbon Steel
Aluminium
Stainless Steel
QUALITY CONTROL
1) High quality raw materials:
- Material Grade
- Pre-Scanned for Laminations
2) Accurate finished dimensions and tolerances
3) Smooth final surface finish
Technical competency pieces
Surface
MT / PT / VT
MT / PT / VT Plate
Single Grove
Dim: 300 x 300 x 10
Material: Carbon Steel
2 Indications
PT
Single Grove
Dim: 300 x 150 x 10
Material: Stainless Steel
2 Indications
Linear & Volumetric
OPTIONS: Each block can contain 1-3 artificial defects, arranged randomly. Which include cracks, internal porosity, inclusions, lack of fusion, lack of penetration etc.
PLATE - PLATE Single Bevel
Dim: 300 x 300 x 10 / 12 / 16 / 20
Material: Carbon Steel
PLATE - PLATE Dual Bevel
Dim: 300 x 300 x 20 / 22 / 25 / 30
Material: Carbon Steel
PIPE - PIPE Single Bevel
Dim:
- 105d x 12 x 300
- 155d x 12 / 16 / 20 / 25 x 300
Material: Carbon Steel
PLATE - PLATE T-Joint Single Bevel
Dim:
200 x 250 x 300 x 12 / 20 / 25
Material: Carbon Steel
PLATE - PLATE T-Joint Dual Bevel
Dim:
200 x 250 x 300 x 20 / 25
Material: Carbon Steel
PLATE - PLATE Y-Joint Single Bevel
Dim:
200 x 250 x 300 x 20
Material: Carbon Steel
PIPE - PLATE T-Joint Single Bevel
Dim:
A)
Pipe: 105d x 12 x 150
Plate: 400 x 400 x 20
Material: Carbon Steel
B)
Pipe: 200d x 12 x 150
Plate: 500 x 500 x 20
INSERT Type
C)
Pipe: 105d x 12 x 150
Plate: 400 x 400 x 20
D)
Pipe: 200d x 12 x 150
Plate: 500 x 500 x 20
DOCUMENTATION
Each Reference piece is supplied with a schematic & RT film.
Packaging: Wooden box
For competency and training purposes in conventional and advanced techniques
We're looking to rent our reference test pieces out to labs for short periods.
TBA as we're still looking at what we can do.
Your input is helpful.
