Ultrasonic Thcikness Testing Simplified

 An ultrasonic thickness gauge is like the ultimate sound detective—it sends a sound pulse through a test piece, waits for it to bounce back from the far wall, and says, 'Gotcha!

 The maximum thickness we can measure is like trying to yell through a wall—the thicker it gets, the more the sound just gives up halfway. And as for velocity, if the material’s sound speed doesn’t vibe with the gauge’s calibration, your results might be as trustworthy as a weather forecast. So, getting that speed right is the secret to accurate measurements!

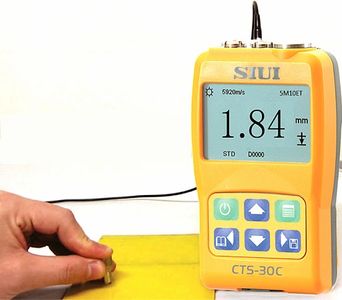

An ultrasonic thickness (UT) gauge is like a little detective for metal and other solid materials. In maritime heritage work, it helps figure out just how much iron is left holding together those old ship hulls and plating—think of it as giving history a health check!

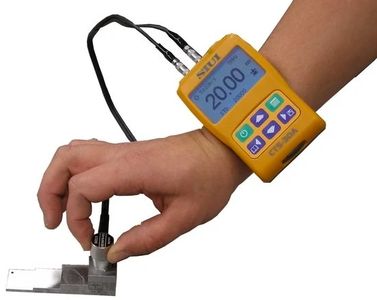

The UT gauge works by sending out high-frequency sound pulses from a hand-held probe that’s pressed against the material. It listens for the echo to bounce back from the far side and does some quick math. If you know the speed of sound in the material, you can calculate the thickness by multiplying that speed by half the total travel time. Basically, it’s the sound version of 'measure twice, cut once!'

This method has a number of advantages:

• It does not affect the material being tested
• A direct measurement of thickness is made
• It provides instantaneous results

• Minimal processing of the measurements is required

• Minimal expertise is required to collect the measurements

• Access is needed to only one side of the material

• Minimal preparation is required

• The method is non-hazardous to the operator

• The equipment is portable and easy to use

Some disadvantages of this method include:

• The ultrasound does not penetrate concretion so the surface of the metal must be cleaned
• Tight coupling is needed between the probe and the metal
• Materials that have rough surfaces, are exceptionally thin or not homogeneous are difficult to measure
• Cast iron and other coarse grained materials are difficult to inspect due to low sound transmission and high signal noise
